CLUB3D

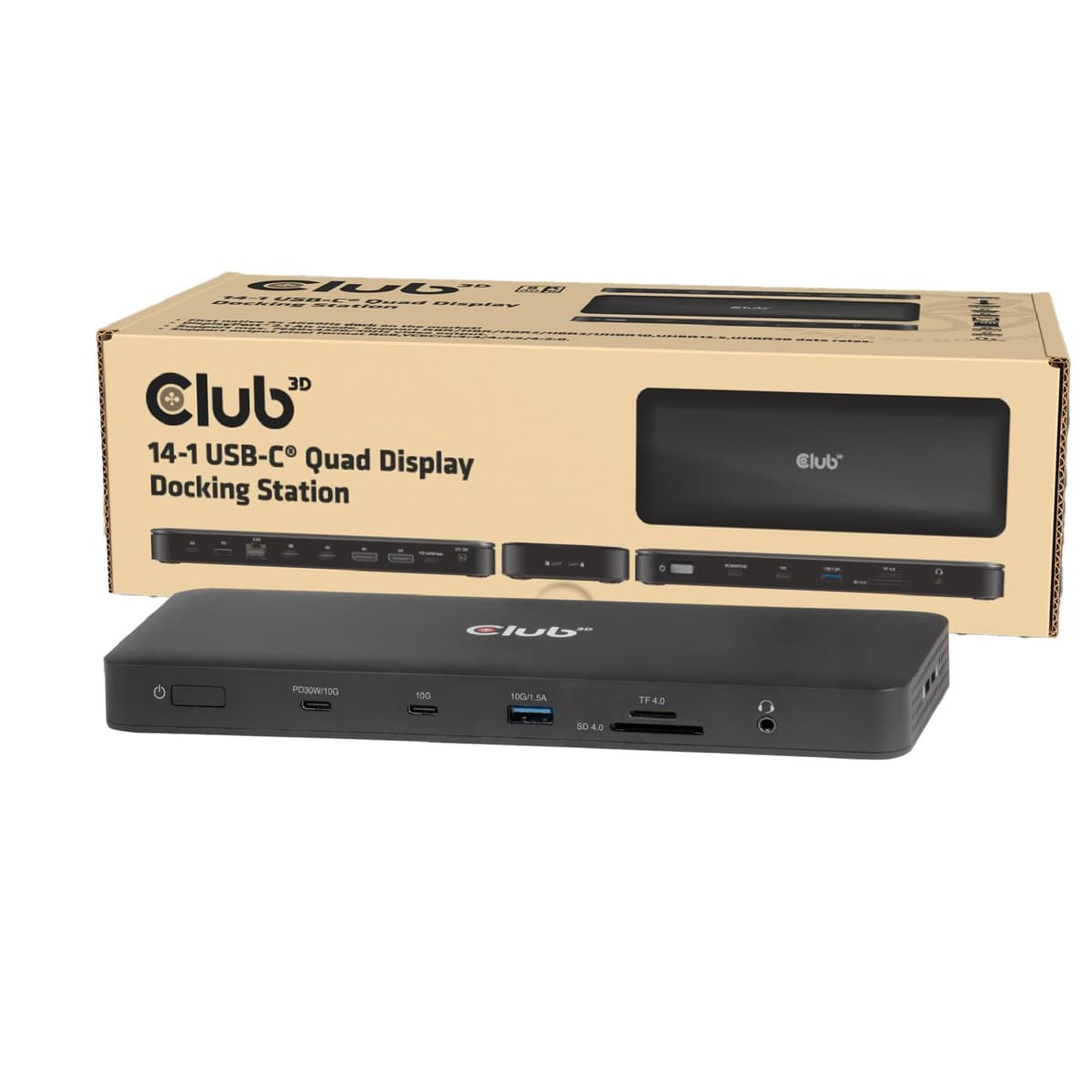

CLUB3D CSV-2540 USB-C docking station 14-in-1, 4 × 4K 60 Hz, 2.5G LAN, 100 W

The CLUB3D CSV-2540 is a 14-in-1 USB-C docking station that natively drives up to four 4K 60 Hz monitors through DisplayPort 2.1 Alt Mode. From a 150 W external power source the laptop gets up to 100 W and a phone gets up to 30 W from a separate USB-C port; there is also 2.5 Gigabit Ethernet and a card reader.

  • Host connection: USB-C, DisplayPort 2.1 Alt Mode, 1 m cable
  • Video outputs: 2 × HDMI, 2 × DisplayPort (DP++); 4 × 4K 60 Hz, up to 7680 × 4320 30 Hz on one display; HDR10+
  • Charging: 150 W external power, up to 100 W to the laptop (PD 3.0), up to 30 W to a phone
  • USB ports: 2 × USB-A 5 Gbit/s, 3 × USB-C (USB 3.2 Gen 1)
  • Network and more: RJ-45 up to 2.5 Gbit/s, SD and microSD, 3.5 mm audio jack
  • Controls: power switch and LED indicator; Windows 10/11

Description

Four 4K displays over one cable

DisplayPort 2.1 Alt Mode supports data rates up to UHBR20, so the dock can send four 4K 60 Hz signals natively, without a DisplayLink driver. On a single display the maximum is 7680 × 4320 at 30 Hz, and HDR10+ adds a wider dynamic range. The DisplayPort outputs support DP++, so a simple DP to HDMI adapter connects an HDMI monitor too. According to the manufacturer, it is compatible with all Thunderbolt and full-featured USB-C laptops.

Who this docking station is for

Analysts, designers and engineers who work with four monitors and do not want to install DisplayLink drivers; offices with a 2.5 Gigabit network; and anyone who wants to charge a laptop and a phone on the desk at the same time. The power switch turns the dock off when it is not in use.

Specifications

General

BrandCLUB3D
Product colourBlack
HDCPYes
HDCP version1.4/2.3
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Headphone outputs1
EAN8719214473501

Display

HD type8K Ultra HD
Maximum refresh rate60 Hz
High Dynamic Range (HDR) supportedYes
Maximum digital resolution7680 x 4320

Storage

Compatible memory cardsMicroSD (TransFlash)/SD

Ports

Card reader integratedYes
HDMI ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity3
USB Type-C DisplayPort Alternate ModeYes
USB Power Delivery (USB PD)Yes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000/2500
USB 3.02
Power connectorUSB Type-C
USB cable length1
DisplayPorts quantity2
USB Power Delivery up to100
USB Power Delivery revision3.0
Number of USB ports with PowerShare support1

Connectivity

Connectivity technologyDocking
Headphone connectivity3.5 mm

Software & security

Windows operating systems supportedWindows 10/Windows 11

Battery & power

Power source typeUSB

Features

LED indicatorsYes
Plastic packaging weight4
Total plastic packaging weight20
Paper/cardboard packaging weight147
Total paper/cardboard packaging weight735

Dimensions & weight

Weight361 g

Questions & answers

Does the dock charge the laptop, and how much?

Yes. The dock uses a 150 W external power source: up to 100 W goes to the laptop (USB PD 3.0) and up to 30 W to the USB-C port next to the power switch. The manufacturer does not specify whether the power adapter is included.

How many monitors can I connect?

Up to four 4K 60 Hz monitors: two over HDMI and two over DisplayPort. The laptop USB-C or Thunderbolt port must support DisplayPort Alt Mode.

Can I connect an HDMI monitor to a DisplayPort output?

Yes, the DisplayPort outputs support DP++, so a simple DP to HDMI adapter works.
